Description

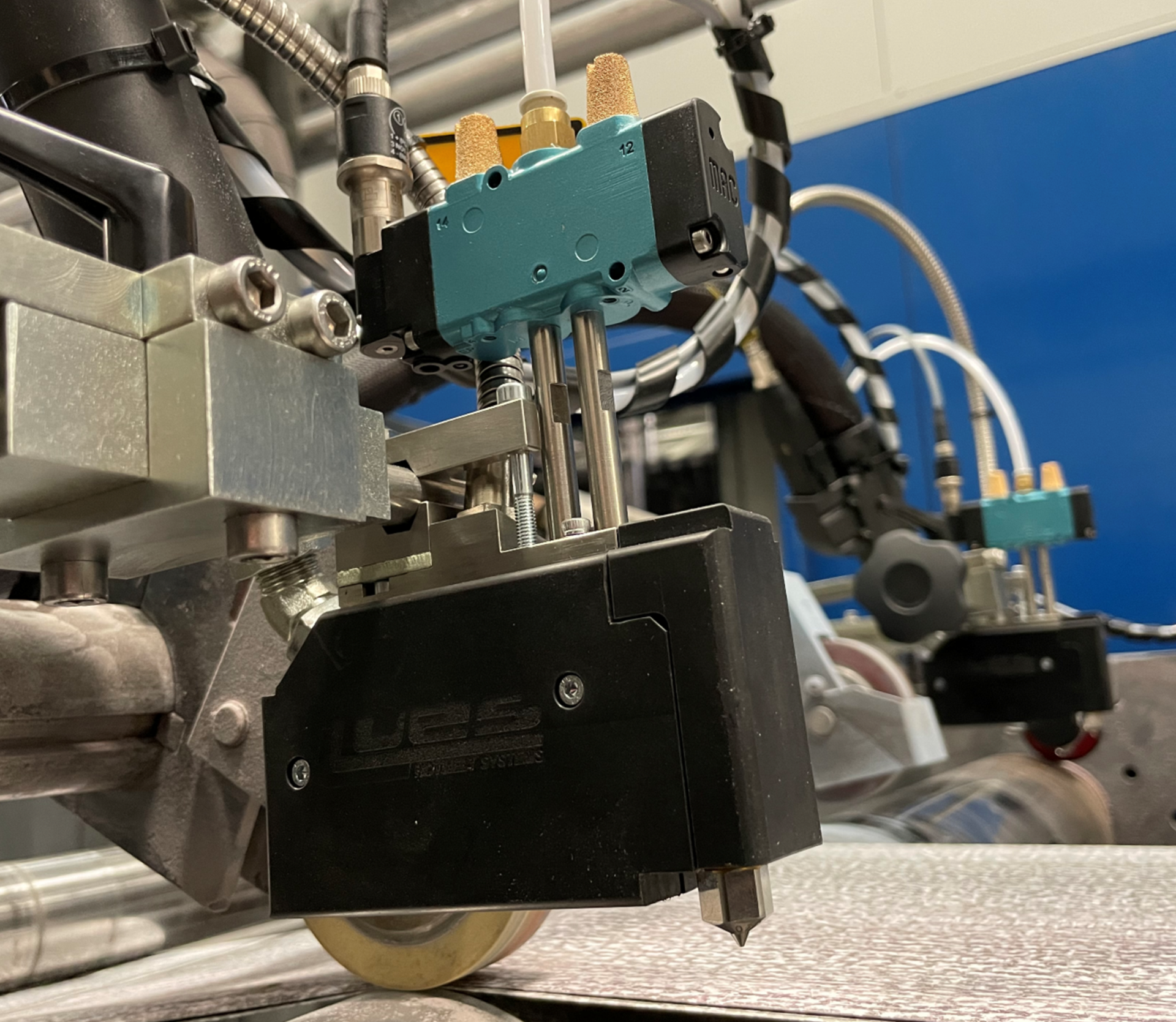

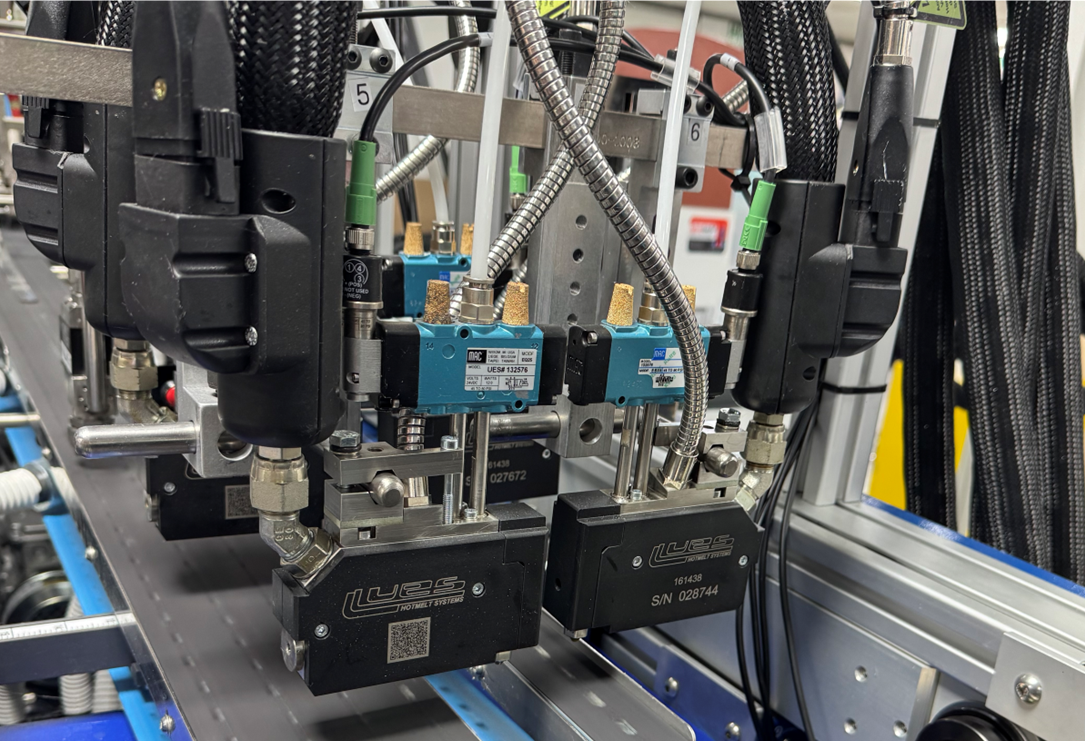

UES Rapid ECO Hot Melt Glue Application Head
High-Speed. Energy Efficient. Built for Precision.
The UES Rapid ECO Application Head is a next-generation hot melt applicator designed to deliver exceptional performance, efficiency, and reliability across a wide range of industrial gluing applications. Engineered for high-speed production environments, the Rapid ECO combines compact design with advanced thermal insulation and integrated filtration—making it one of the most efficient application heads on the market today.
Key Features & Benefits
⚡ Ultra-Fast Performance
- Activation speed from as low as 3 milliseconds
- Capable of up to 7,500 cycles per minute (application dependent)
- Ideal for high-speed packaging and print finishing lines
🔋 Up to 40% Energy Savings
- Advanced insulation significantly reduces heat loss
- Lower energy consumption compared to standard application heads
- Supports reduced operating costs and improved sustainability
🌡️ Enhanced Operator Safety
- Surface temperature reduced by over 40%
- Built-in contact protection for safer operation
📏 Compact & Space-Saving Design
- Up to 45% smaller than comparable heads
- Perfect for installations where space is limited
🧰 Integrated Filter System
- Built-in filtration improves adhesive quality and system reliability
- Reduces maintenance and downtime
🔧 Quick & Easy Maintenance

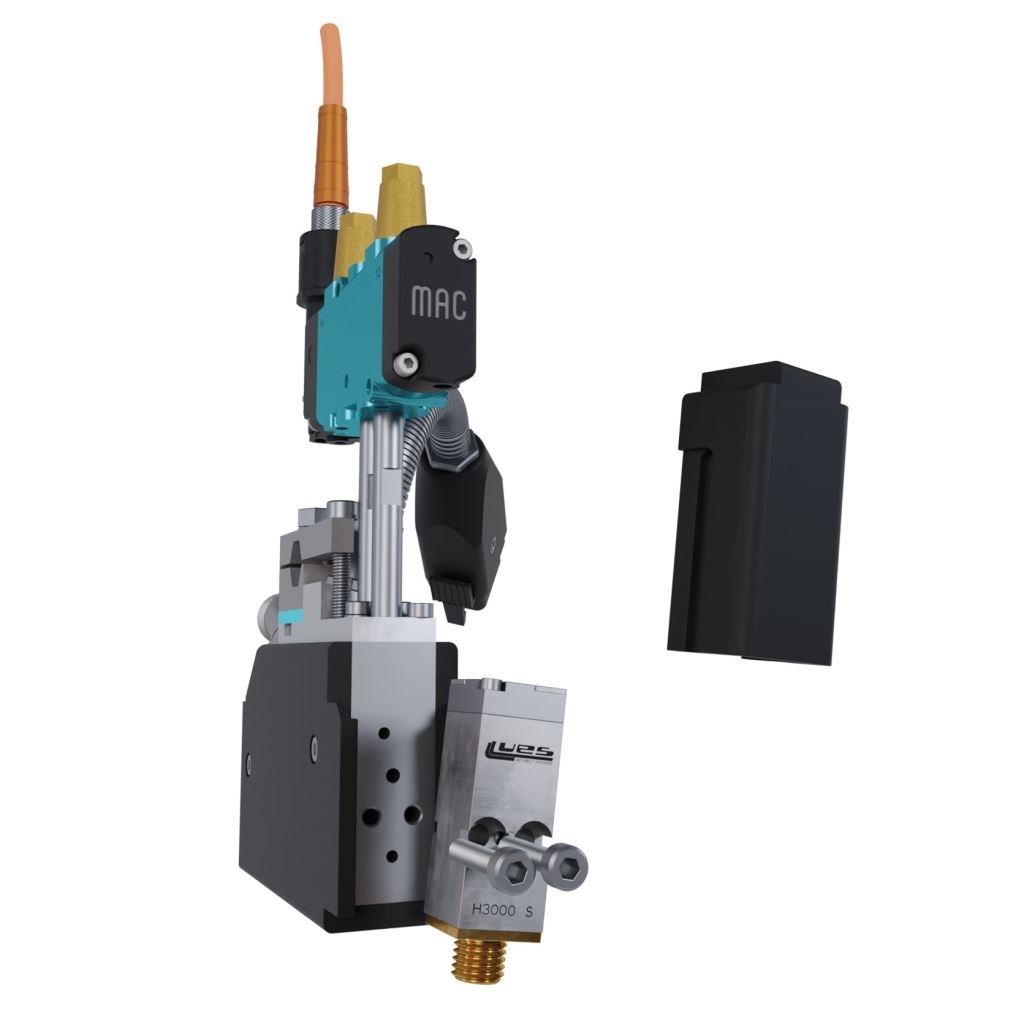

- Fast module replacement via removable cover
- Minimises production interruptions
💨 Flexible Operation
- Air open / air close functionality
- Supplied with 5/2-way solenoid valve for precise control
🎯 Improved Application Quality
- Enhanced glue cut-off for cleaner bead definition
- Reduced stringing (“hairing”) for consistent results
Technical Specifications
- Activation Speed: From 3 ms
- Cycle Rate: Up to 7,500 cycles/min
- Protection Class: IP54 (IP65 optional)
- Module Type: UES Mini Module
- Valve Included: 5/2-way solenoid valve
- Compatibility: Suitable for all major hot melt systems
Compatibility
The Rapid ECO application head is designed to integrate seamlessly with a wide range of hot melt systems and is compatible with leading industry equipment, making it a versatile upgrade or replacement solution.
Applications
- Carton sealing
- Packaging lines
- Print & mail finishing
- Product assembly
- Labelling and bonding
Why Choose the UES Rapid ECO?
The Rapid ECO stands out as one of the fastest and most efficient hot melt application heads available. With its combination of energy savings, compact design, and high-speed capability, it delivers measurable improvements in both performance and operational cost.
Get in Touch
Looking to improve your adhesive application process?
Contact igluetech today to find out how the UES Rapid ECO can enhance your production line.
